Electric Underfloor Heating Cables are changing the way we think about indoor comfort. Instead of relying on bulky radiators or forced-air vents, these cables work quietly behind the scenes—literally beneath your feet—to keep your home warm and inviting.
They’re especially popular in renovations and modern builds where people want both energy efficiency and sleek design. If you’re planning to redo your bathroom, finish a basement, or just want a more consistent heat source, electric floor heating is worth a serious look.
How It Works

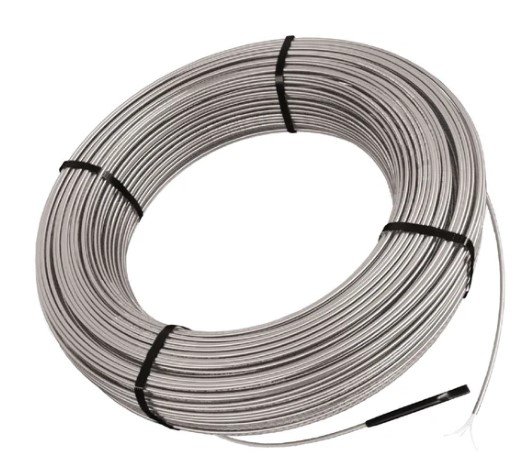

At the core of the system are cables that produce heat through electrical resistance. Once installed under your floor, they emit warmth that rises evenly across the entire space.
Because the heat starts at floor level, it warms the objects and people in the room directly, instead of just pushing warm air around. That means fewer cold spots and more stable temperatures—especially in rooms that are usually chilly.
Types of Heating Cables
Not all heating cables are the same, and choosing the right one depends on the room and your goals.
- Loose-wire cables are flexible and allow you to lay them out exactly how you need, perfect for rooms with unusual shapes.
- Mesh mats come with cables already attached to a roll-out mesh, which speeds up installation.
- Self-regulating cables adjust their heat output automatically depending on the temperature around them—ideal for added energy savings and safety.
Key Components
Every electric floor heating system includes a few essential parts:
- The heating cables themselves, which are built to withstand wear, moisture, and pressure.
- An uncoupling membrane or clips to secure the cables in place and protect them from shifting or damage.
- A thermostat and sensor, which let you control the temperature and ensure the system runs efficiently and safely.
Cable Selection Criteria
There are a few key details to keep in mind when selecting Electric Underfloor Heating Cables:
- Voltage: Most systems are either 120V or 240V. Both work well, but larger rooms typically benefit from 240V.
- Wattage per square foot: Higher wattage means faster heating, but the right choice depends on your insulation and flooring.
- Length of cable: Measure your room carefully—cables can’t be trimmed once they’re installed.
- Safety ratings: Look for certified cables that meet safety standards relevant in your region.
Compatible Flooring Types
One of the great things about electric floor heating is its versatility. It can be installed under:
- Tile or stone, which conduct heat efficiently and are common in bathrooms and kitchens.
- Engineered hardwood or laminate, as long as the product is rated for use over radiant heat.
- Luxury vinyl plank (LVP), provided the flooring manufacturer confirms it’s safe for use with heating systems.
Installation Process Overview
Installing electric heating cables isn’t overly complex, but it does need to be done right. Here’s a simplified overview:
Start with a clean, level subfloor. Then secure the cables—either into a membrane or with fixing strips—spacing them according to the manufacturer’s guidelines. The temperature sensor gets placed between two loops of cable, and the thermostat gets wired in.
Once everything’s in place and tested, you can install your flooring on top. The result is a seamless system that’s completely hidden but very effective.
Thermostats & Control Systems
Controlling the heat is just as important as generating it. Thermostats come in different styles, from simple programmable units to Wi-Fi-enabled models you can manage from your phone.
Modern thermostats often include smart scheduling, learning features, and built-in safety like GFCI protection. They also let you zone different rooms so you’re not wasting energy heating empty spaces.
Performance & Comfort Benefits
The appeal of Electric Underfloor Heating Cables goes beyond just warmth. They provide even, consistent heat across the room, eliminating those annoying cold spots you get with traditional systems.
They’re also quiet, invisible, and don’t circulate dust or allergens. That makes them a great option for people with respiratory concerns—or anyone who just wants a cleaner, calmer indoor environment.
Maintenance & Longevity
One of the biggest advantages of these systems is that, once they’re in, they’re largely maintenance-free.
The cables are designed to last for decades, especially when properly installed. Thermostats may need occasional checking or updates, but the system as a whole requires very little attention. And because the cables don’t have moving parts, there’s less that can go wrong.
Common Pitfalls & How to Avoid Them
There are a few common mistakes that can turn a good installation into a problem:
- Spacing errors can lead to hot and cold spots. Always follow the cable layout plan exactly.
- Poor sensor placement might cause inaccurate temperature readings. Keep it away from direct sunlight or drafts.
- Using the wrong flooring can trap heat and cause warping. Make sure your floor covering is rated for radiant heat.
Taking the time to plan ahead can save you a lot of hassle later on.
Energy Efficiency & Sustainability
Electric underfloor heating is more energy-efficient than many people assume. Since it heats from the ground up and warms objects directly, it can allow you to set your thermostat lower while still feeling comfortable.
You also avoid duct losses common in forced-air systems, and with smart thermostats and zoning, you only use energy where it’s needed. Pair it with renewable energy sources, and the environmental impact can be surprisingly low.
FAQs
Can I install electric underfloor heating in an existing home?
Yes, especially during renovations. It’s easiest when replacing flooring, but retrofits are very doable with the right system and planning.
Is it safe to use in wet areas?
Absolutely. Many systems are rated for use in bathrooms and laundry rooms, as long as they’re installed with proper waterproofing and GFCI protection.
Can I use it under wood or vinyl?
Yes, but only if the product is rated for radiant heat. Always check with the flooring manufacturer first.
What happens if a cable gets damaged?
Damaged cables usually need to be repaired using a special kit, and testing tools like a multimeter are used to pinpoint the issue. That’s why careful installation is so important.
Main Key Takeaways
- Electric Underfloor Heating Cables provide a discreet, efficient, and highly comfortable way to heat your home.
- They work with a wide range of flooring types and can be tailored to suit almost any room.
- Smart controls, even heating, and low maintenance make them a strong choice for anyone planning a renovation or new build.
- With proper planning and installation, they can deliver long-term performance and a noticeable boost in comfort.
